Exquisite process, enjoy U8K live streaming audio interface
Exquisite process, enjoy the sound quality

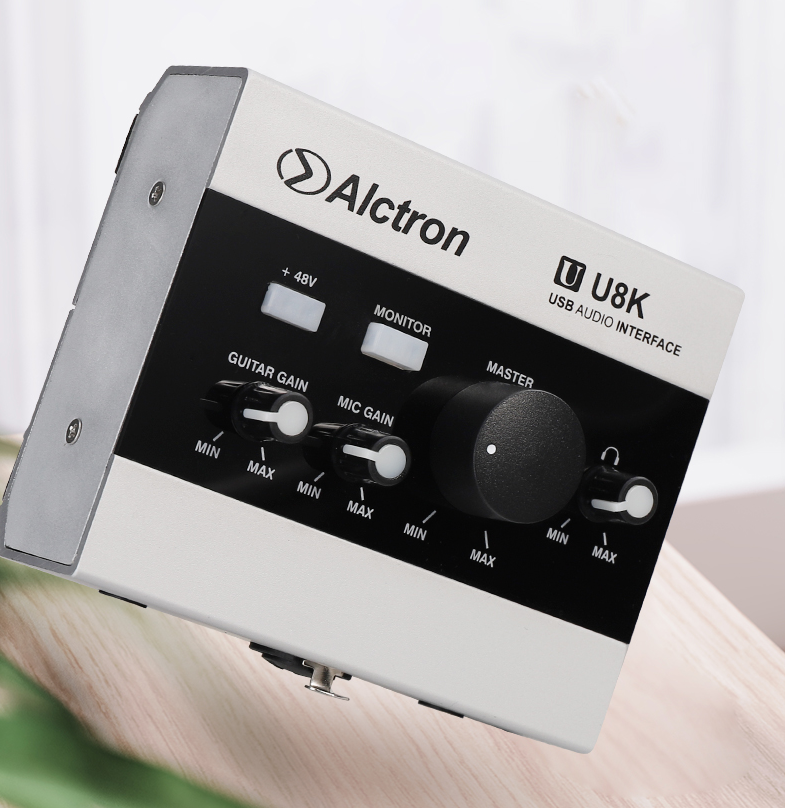

ALCTRON U8K







U8K is a tiny stereo studio audio interface designed to convert the signal from A to D or D to A. Up to 24bit/192khz sampling rate delivers sonics, lower latency and enhanced ease of use. Its built-in amp circuit helps to amplifier the input signal otherwise to make output signal more pure and clear. It features independent volume control knob and master control, handling the volume in a better way. Instantly start recording without any special driver installations simply plug-and–play. U8K is a better choice for studio and stage performance.








Just plug and play without any drivers


ALCTRON U8K


Via USB cable to connect computer, just plug and play without any drivers. Combines convertor cable compatible with most phones, tablets, computers etc devices.


Because audio interface needs a lot of energy so please ensuring your phone is full of energy. Some phone feature over discharge protection, these phones can not use with audio interface.

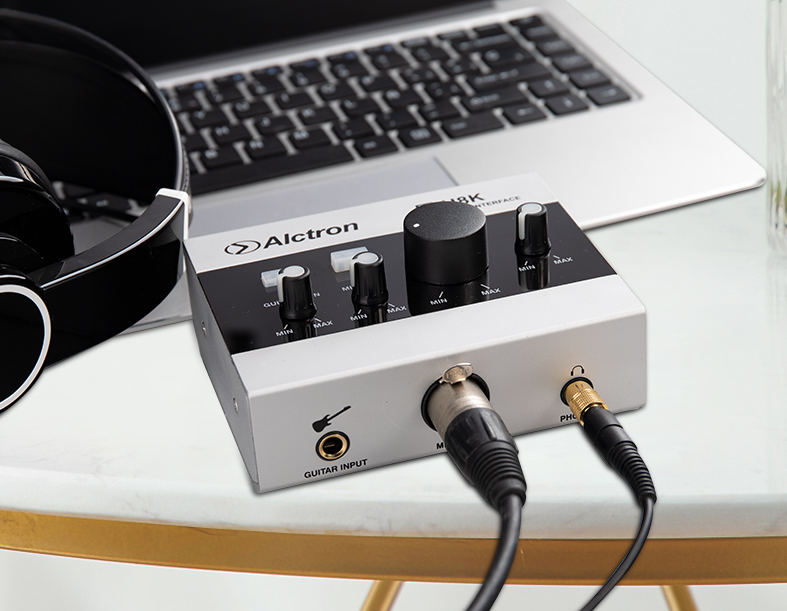

Flexible appearance, easy to carry out


ALCTRON U8K


High quality alum housing, flexible appearance, lightweight, no matter at home or outside, it is easy to carry out.

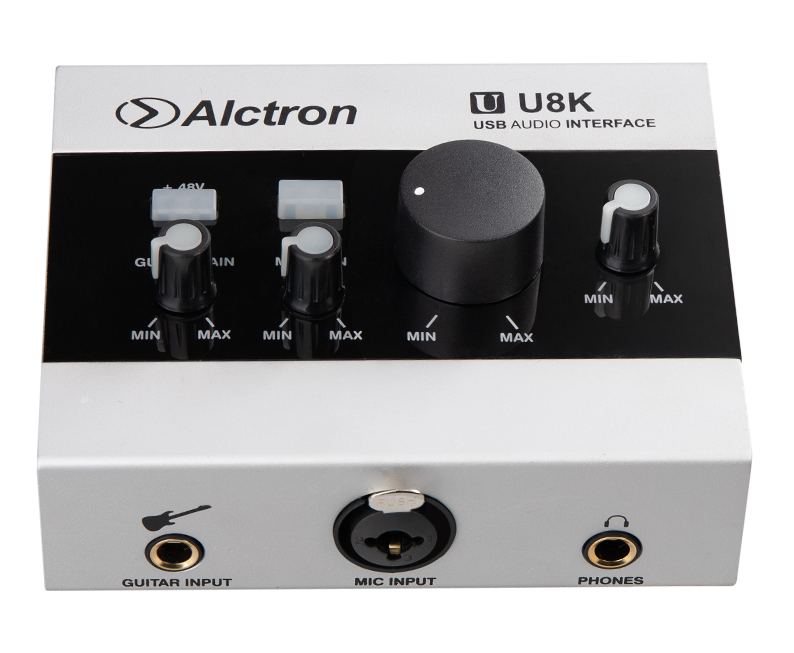

Rich connectors, performance well


ALCTRON U8K


Audio interface features instrument and mic input connector. No matter personal performance or guitar playing U8K can play well.








One button used for monitor


ALCTRON U8K


It features MONITOR button used for realtime monitor. Press the button you can monitor the sound collecting by microphone.

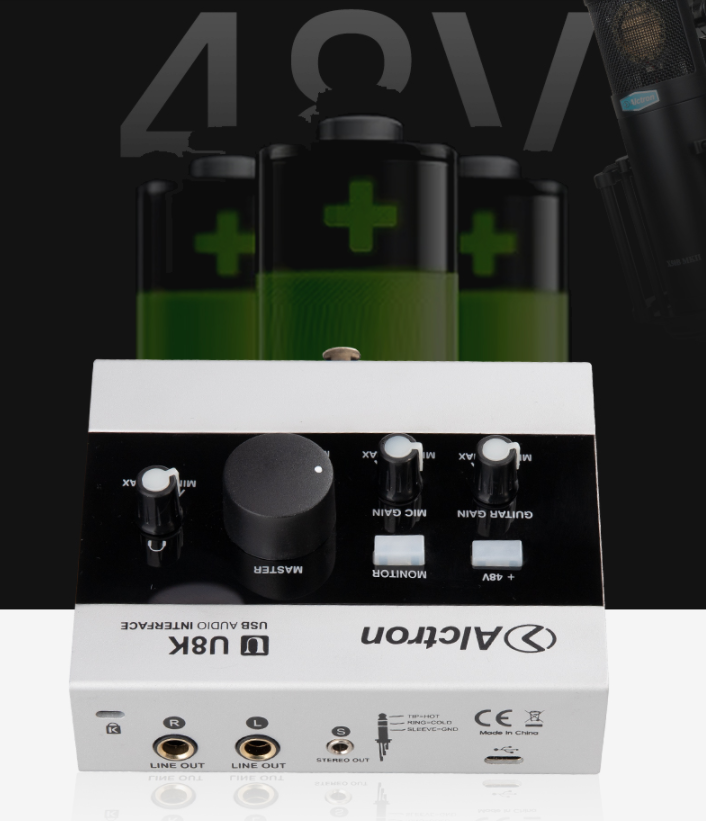

Powerful power, stable performance


ALCTRON U8K



U8K features 48V phantom power offering stable power to condenser mic which makes your mic in ideal performance status.










24bit/192kHz high speed performance chip



ALCTRON U8K


It adopts 24bit/192khz high input/output sampling rate performance chip to convert AD and DA signal. It ensures collecting sound, playing back clear and natural.







Product specification



ALCTRON U8K







Mic input:

Frequency Response: 22Hz to 20kHz (+/-0.2db)

Dynamic Range: 90dB, A-weighted

Signal-to-Noise Range: -90dB, A-weighted

THD+N: <0.0061% (-86dB)

Crosstalk: -85dB @ 1kHz

Input Impedance: 1.8K Ohms, typical

Adjustable Gain: +30dB

Sampling rate: 24bit/192khz



Headphone output:

At max volume: into 100ohm load

Frequency Response: 22Hz to 20kHz (+/-0.2db)

Power into Ohms: 20 mW into 100 Ohms

THD+N: <0.06% (-66dB)

Crosstalk: -90dB, A-weighted

Load Impedance: 32 to 600 Ohms

Max output level: 102V typical

Sampling rate: 24bit/192khz



Guitar input

Frequency Response: 22Hz to 20kHz (+/-0.2db)

Dynamic Range: 90dB, A-weighted

Signal-to-Noise Range: -90dB, A-weighted

THD+N: <0.0061% (-86dB)

Crosstalk: -75dB @ 1kHz

Input Impedance: 47K Ohms, typical

Adjustable Gain: +12dB
